Enter the Turbofan Engine Zone, an immersive hub where students can explore a fully rotatable 3D turbofan engine in stunning detail. Here, they can interact with each component, uncover the inner workings of every section, and gain a clear understanding of how these powerful machines drive modern aircraft to the skies.

Learn, Explore and Understand the Turbofan Engine

Click on any colored component to learn more
Mouse: Left-click + drag to rotate
Zoom: Scroll wheel or pinch
Pan: Right-click + drag or middle mouse
Keys: W/A/S/D to rotate
Jaja

OVERVIEW AND PARAMETERS

  • A turbofan engine consists of a multi-bladed ducted propeller driven by a gas turbine engine.
  • Turbofans were developed to provide a compromise between the best features of the turbojet and the turboprop.
  • Turbofan engines have turbojet-type cruise speed capability yet retain some of the short-field takeoff capability of a turboprop.

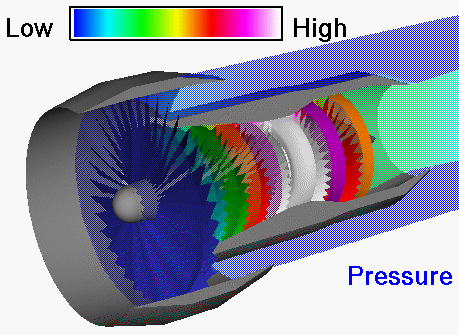

Pressure

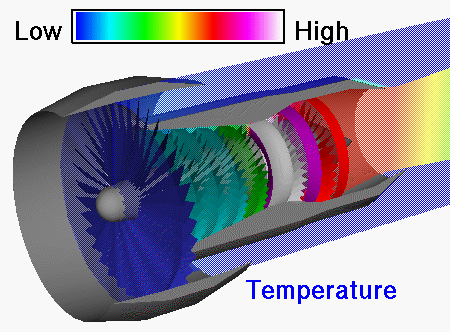

Temperature

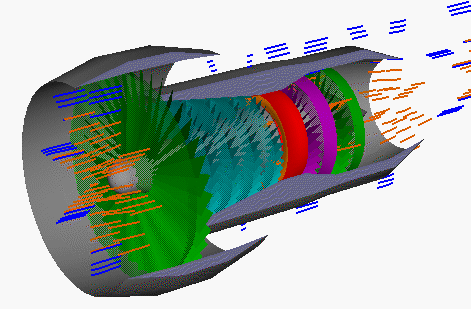

Flow

MORE ABOUT TURBOFAN ENGINE

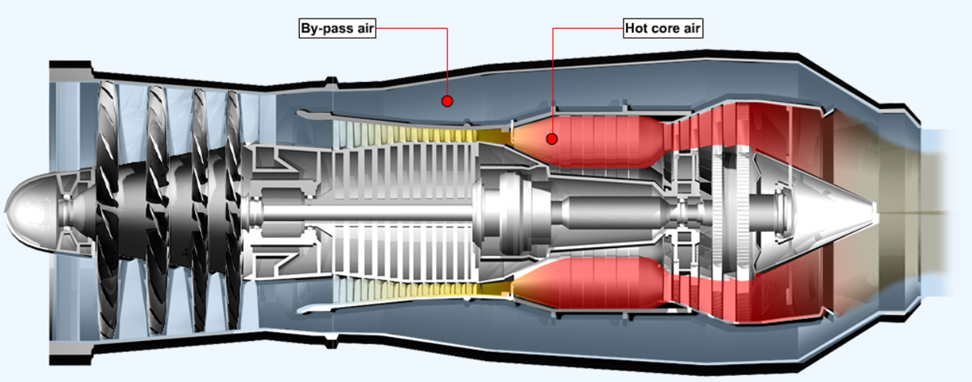

The airlines' choice. Turbofans are like Turbojets but also have a large fan accelerating the air's entry into the engine and adding to the thrust as an internal propeller.

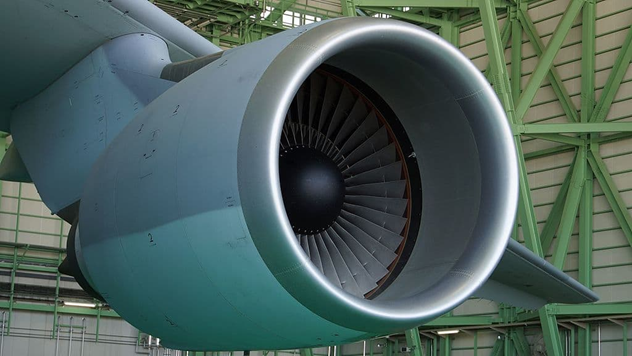

Engines that have the fan mounted in front of the compressor are called forward-fan engines, while turbofan engines that have the fan mounted to the turbine section are called aft-fan engines.
